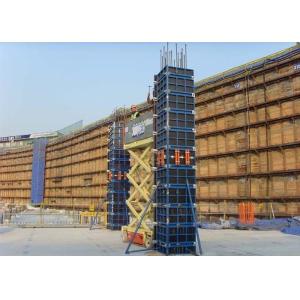

Light weighted Steel Frame Formwork With Plywood for Column Formwork System
Universal column steel frame formwork is a light weighted panel system, 12mm plywood is riveted into steel frame. As a universal panel system, It is easy to adapt column corss section up to 80cmx80cm with panel of 95cm width and 105cmx105cm with panel of 120cm width. The adjustment is 5cm increments in lenght and 30cm increment in height. The panel owns high rigidity and can take fresh concrete pressure up to 80kN/m2, Holes of tie rod is pre-designed on the steel grid or frame profile.
Technical data
• Formwork width: 60cm,95cm,120cm
• Formwork Height: 60cm, 120cm, 300cm
• Maximum permissible concrete pressure: 80KN/m2;
• Shift wheel device is available for moving formwork unit to new position.
Product character
• Easy and simple handling
• Fast panel connection
• High rigidity and long life reuse time
Application field
• Residential housing project
• Municipal engineering
• Industrial building
• Shopping mall
